Clear Opening Finder

Select RCC manhole covers by clear opening size.

Enter a chamber clear opening to shortlist RCC cover and frame dimensions from our catalogue. Final fitment and load suitability must be checked before ordering.

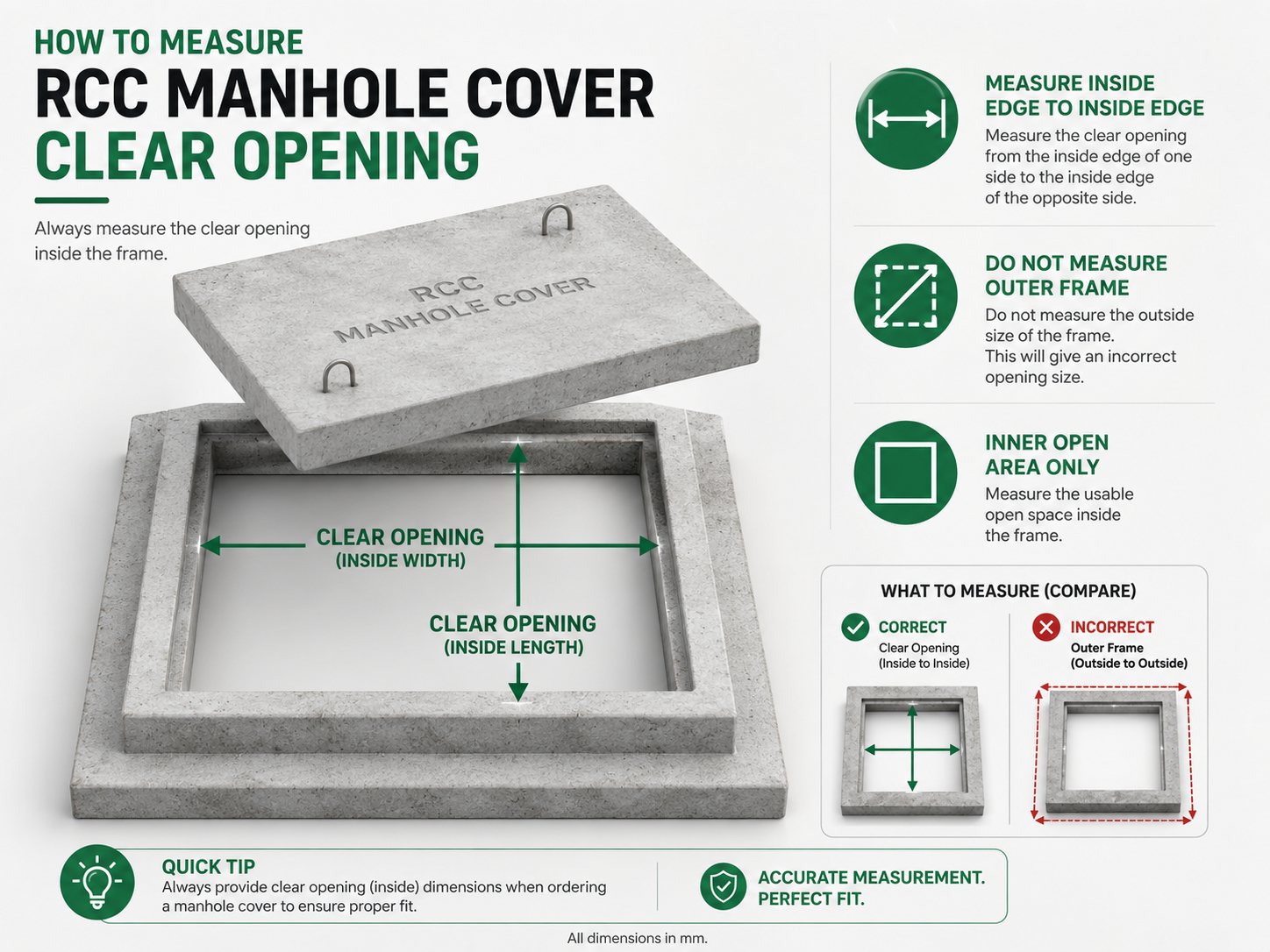

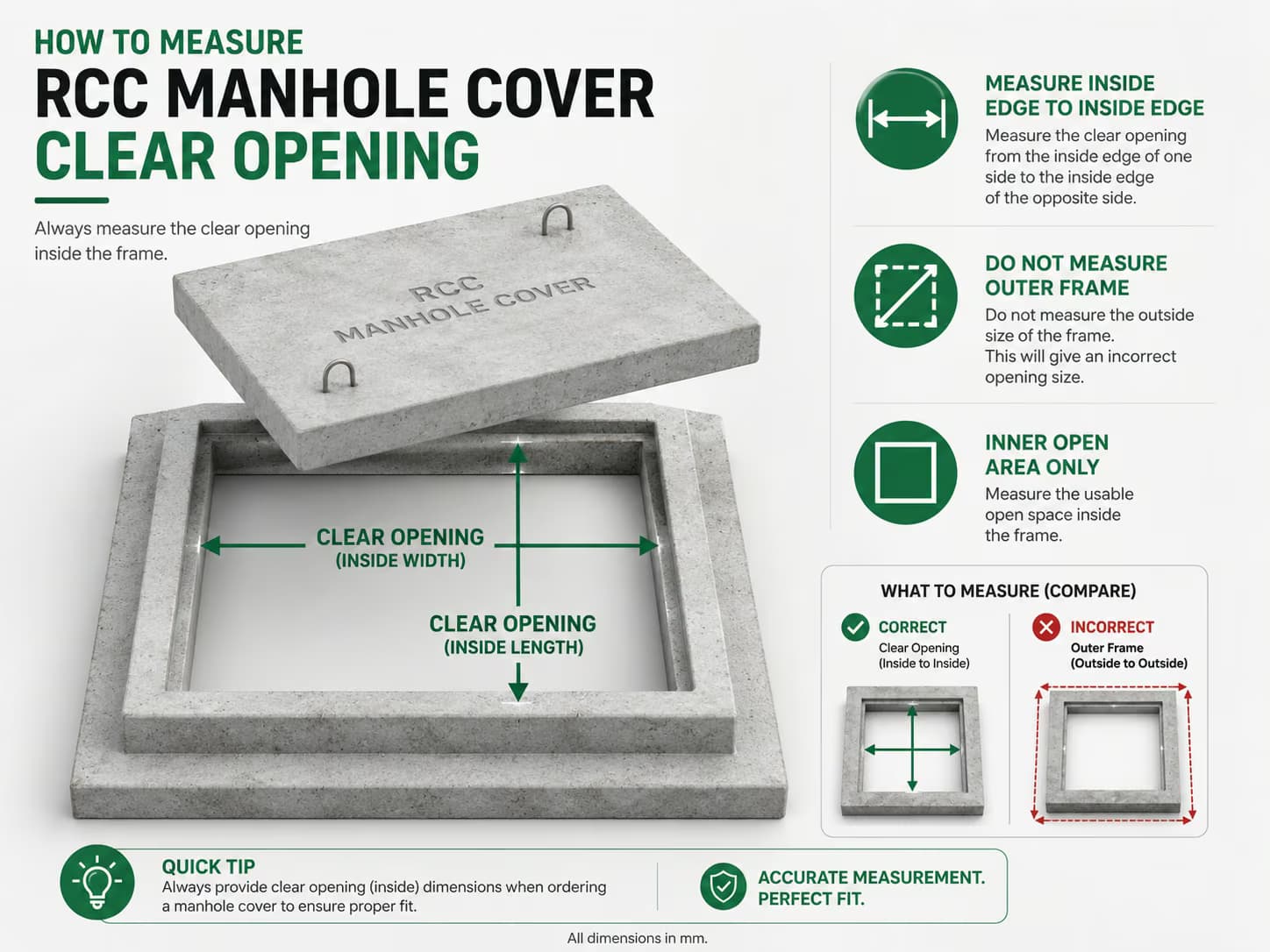

Landscape guide showing how to measure RCC manhole cover clear opening
Clear Opening Finder

Enter clear opening size and get matching RCC cover options.

Customers often know only the chamber clear opening. This tool compares that requirement with catalog sizes and lists catalog opening-size candidates. A size match does not confirm safe installation; check frame seating, chamber support and required load duty.

Measurement reminder
Use inside open area only.
Measure inside edge to inside edge.
Do not enter outer frame size.
The same clear opening is preferred. A slightly larger opening is only a candidate if the outer frame fits and is fully supported by the chamber brickwork; confirm the rated load duty.
Required: Enter a valid size · All shapes · All product types
Fitment note
Opening-size matches are for shortlisting only. Confirm frame seating/bearing, chamber support, cover dimensions and required traffic load with the project engineer before ordering. Larger openings are not automatically safe or suitable.
Enter the customer clear opening size to see exact matches, nearest larger RCC manhole, frame, drain cover, and grating options.

Catalogue clear openings and outer frame sizes

These are published dimensions from our individual product listings, not a universal size chart. A matching opening alone does not prove safe fitment. Verify the full outer-frame support, seating depth, construction details and tested load duty with the project engineer.

Available clear-opening and outside-frame dimensions by RCC product variant
Clear openingOuter frame sizeProduct / shapeDetails
200 x 200 mm300 x 300 mmRCC Precast Manhole Cover 300 x 300 x 50 mm (square)See specification
292 x 292 mm460 x 460 mmRCC Manhole Cover 460 x 460 x 75 mm with frame (square)See specification
300 x 300 mm500 x 500 mmRCC Precast Manhole Cover 500 x 500 x 100 mm (square)See specification
400 x 400 mm600 x 600 mmRCC Precast Manhole Cover 600 x 600 x 100 mm (square)See specification
500 mm round720 x 720 mmRCC Manhole Cover 720 x 720 x 120 mm (round)See specification
500 mm round760 mm diameterRCC Precast Round Manhole Cover 760 (D) x 150 (H) mm (round)See specification
500 mm round790 mm diameterRCC Precast Round Manhole Cover 790 (D) x 175 (H) mm (round)See specification
560 mm round838 mm diameterRCC Precast Round Manhole Cover 838 (D) x 178 (H) mm (round)See specification
600 x 450 mm812 x 650 mmRCC Precast Rectangular Manhole Cover 812 x 650 x 120 mm (rectangular)See specification
600 x 600 mm850 x 850 mmRCC Precast Manhole Cover 850 x 850 x 150 mm (square)See specification
940 x 450 mm1219 x 711 mmRCC Precast Rectangular Manhole Cover 1219 x 711 x 127 mm (rectangular)See specification

Not seeing your opening? Ask for a project-specific quotation rather than assuming a larger frame will fit.

RCC Size Selection Guide

RCC manhole cover clear opening size finder for project buyers

Compare catalogue clear opening sizes for RCC covers and frames. Equal or larger dimensions are not proof of suitability: check frame seating, supporting structure and the required load class before ordering.

For square or round openings, enter the same value in both boxes.

For drain covers or rectangular chambers, enter length and width separately.

The finder compares opening dimensions only. Larger matches are not automatically safe; confirm frame support and load rating.

Use the WhatsApp or Get Quote button for product and size assistance.
