RCC Square Manhole Cover
RCC Precast Manhole Cover 500 x 500 x 100 mm
Trusted Material & Process
RCC precast manhole cover 500 x 500 x 100 mm with frame for drainage, utility, and inspection chambers. A practical size for reliable fitment, secure seating, and bulk project supply.
RCC Precast Manhole Cover 500 x 500 x 100 mm With Frame Size

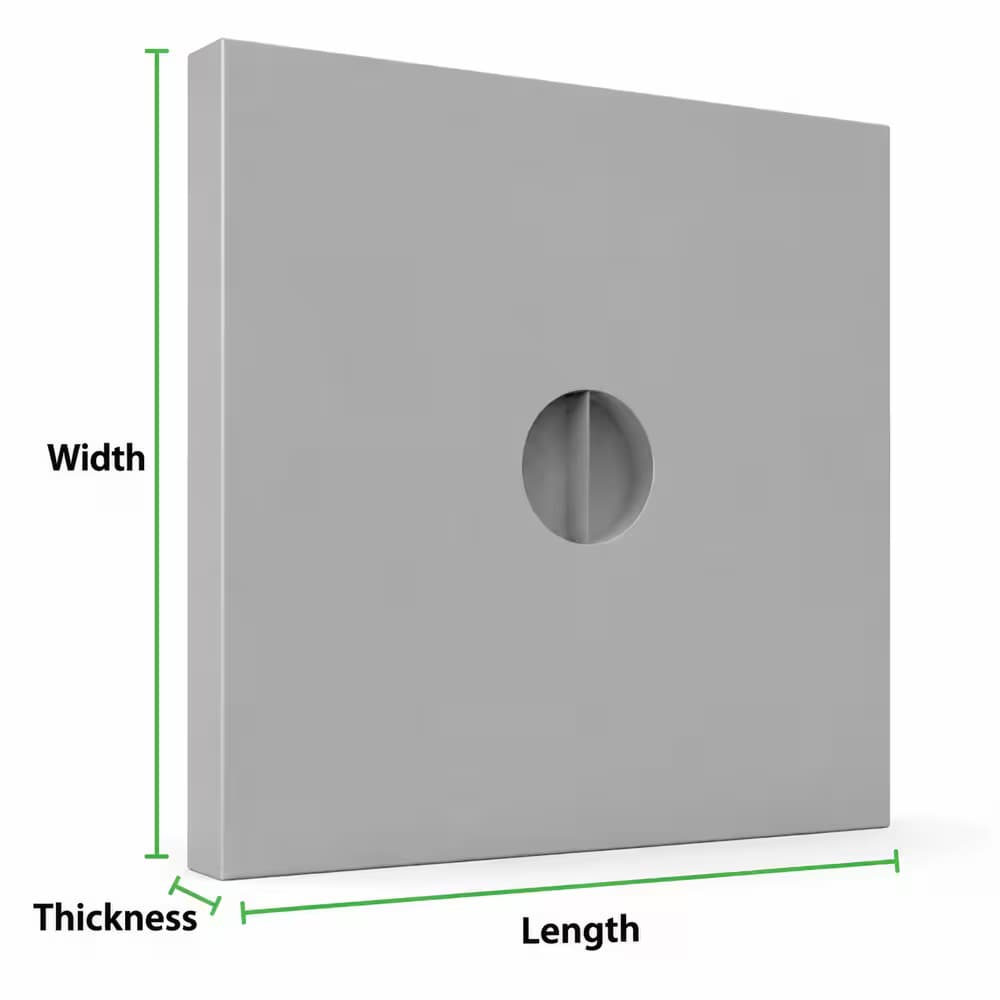

Square Manhole Cover Diagram
Cover Dimensions
Swipe table →| Attribute | MM | Approx Inch |
|---|---|---|
| Cover Square (LxW) | 375 x 375 mm | Approx. 15 x 15 inch |
| Cover Height (H) | 50 mm | Approx. 2 inch |
| Cover Weight | 17 KG | - |
| Load Capacity | Light duty / project-specific | - |

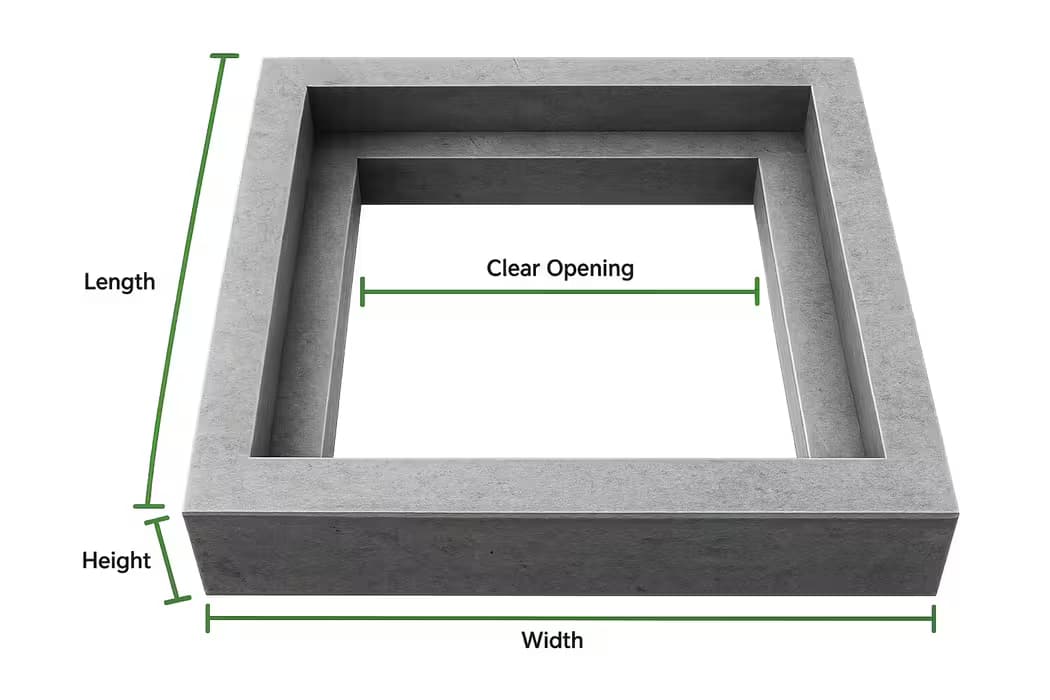

Square Frame Diagram
Frame Dimensions
Swipe table →| Attribute | MM | Approx Inch |
|---|---|---|
| Frame Square (LxW) | 500 x 500 mm | Approx. 20 x 20 inch |
| Frame Height (H) | 100 mm | Approx. 4 inch |
| Clear Opening (LxW) | 300 x 300 mm | Approx. 12 x 12 inch |
| Frame Weight | 33 KG | - |
Product Details
Key Features
RCC Precast Manhole Cover 500 x 500 x 100 mm pairs a square reinforced-concrete cover with a matching frame for drainage chambers, inspection points, footpaths, and light commercial access. Confirm the opening, seating surface, and expected traffic before selecting the load duty.
Applications
Suitable for drainage lines, sewer inspection chambers, utility access, residential layouts, commercial projects, industrial sites, and RCC product supply across Gujarat.
Benefits
Factory-made dimensions reduce on-site casting work.
Pre-order checks help match the product to the opening and duty.
Why Choose Chamunda Cement Products
Why Choose This RCC Manhole Cover?
This RCC precast manhole cover is designed for stable seating and long service life in municipal drainage and utility access points. The 500 x 500 x 100 mm frame supports easy alignment, while the matching cover provides secure closure for inspection chambers and cable or pipe networks. Contractors choose this size for consistent casting, reliable fitment, and smooth installation across residential and commercial projects.
Before You Order / Order Information
Other Sizes in This Category
Size
RCC Precast Manhole Cover 300 x 300 x 50 mm
Size
RCC Manhole Cover 460 x 460 x 75 mm with frame
Size
RCC Precast Manhole Cover 600 x 600 x 100 mm
Size
RCC Precast Manhole Cover 850 x 850 x 150 mm
Related Product Categories
RCC Precast Chamber
Precast RCC chambers designed for underground cable and inspection access points, offering durable construction, accurate dimensions, and long service life.
RCC Drain Cover
Custom-size precast RCC drain cover slabs manufactured against project dimensions, site load requirements and confirmed drawings. Request a made-to-order quote from Jamnagar, Gujarat.
RCC Earthing Chamber
Pre-fabricated earthing chambers designed for safe and accessible electrical earthing systems in all types of buildings and infrastructure.
FAQ
Questions about RCC Precast Manhole Cover 500 x 500 x 100 mm
What are the specified dimensions of RCC Precast Manhole Cover 500 x 500 x 100 mm?
Does RCC Precast Manhole Cover 500 x 500 x 100 mm match my chamber clear opening?
How do I measure a square manhole cover opening?
How should the load class be selected?
Is the matching RCC frame included?
